MR-03 vs MR-04 in 2026: Which Mini-Z Platform Is Right for You?
MR-03 has deeper parts support and lower cost. MR-04 corners faster out of the box. Side-by-side comparison of handling, parts, electronics, and cost to race-ready.
MR-03 · MR-04
If you’re getting into 1/28 scale racing in 2026, you have two main choices from Kyosho: the legendary MR-03 platform (specifically the EVO/EVO2 chassis) or the newer MR-04EVO2.
The MR-03 has been the gold standard for over a decade. The MR-04 is the new flagship, designed to lower the center of gravity and improve cornering speed.
But “newer” doesn’t always mean “buy this one immediately.” If you’re still weighing whether Mini-Z is the right hobby, read why Mini-Z is the best entry point to RC first. Otherwise, let’s break down the differences, the costs, and who should buy which car.
Prices shown in USD. Check your local retailer for current regional pricing.
The Quick Verdict
- Buy the MR-03EVO if you want the widest possible parts support, a proven setup database, or are racing on a budget. It is still competitive at the club level and has thousands of aftermarket parts available. → Kyosho MR-03EVO Chassis Set on Amazon
- Buy the MR-04EVO2 if you are chasing lap times, want the newest sensor-based brushless tech, and are comfortable with a slightly smaller (but growing) parts ecosystem. → Kyosho MR-04EVO2 Chassis Set on Amazon
Key Differences at a Glance
| Feature | MR-03 EVO / EVO2 | MR-04 EVO2 |
|---|---|---|
| Motor Position | Higher CG | Lower CG (Motor mount redesigned) |
| Front Suspension | Standard Kingpin Coil | Redesigned Knuckles & Kingpins |
| Electronics | FHSS / ASF / MHS | FHSS / Noble NB4 / Futaba Support |
| Sensor Support | Sensorless Brushless | Sensored Brushless (Smoother low end) |
| Width Options | Narrow (N) & Wide (W) | Narrow (N) & Wide (W) - New offsets |
| Price (Chassis) | around $170 - $200 USD | around $230 - $260 USD |
1. Handling & Geometry

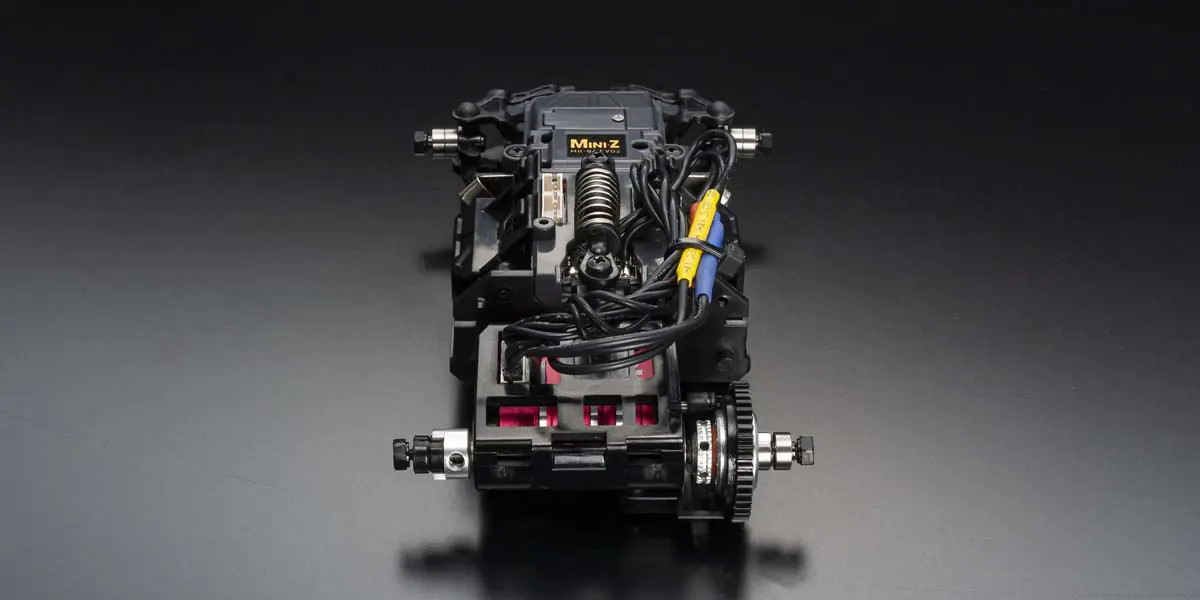

The MR-04 was built to fix the MR-03’s main weakness: high center of gravity (CG). The batteries sit lower, and the motor mount is redesigned to drop the motor closer to the ground.
- Cornering: The MR-04 feels more “planted” out of the box. It has less tendency to traction roll on high-grip RCP tracks.
- Steering: The MR-04 uses a new knuckle design that changes the scrub radius. It feels more direct but requires specific MR-04 front springs and knuckles. MR-03 front springs do not fit the MR-04.
The MR-03 is a solved problem. With a brass front bulkhead and the right tires, it handles beautifully. It’s “tippier” than an MR-04, but 10+ years of setup guides exist to tame it. On both platforms, the T-plate is the primary rear suspension tuning lever — stiffness selection matters more than most beginners expect.
2. Parts Compatibility (The Big One)
This is where the decision gets tricky.
What Fits Both?
- Bodies (mostly - check motor mount clearance)
- Wheels (Standard offsets, though MR-04 sometimes needs different offsets for the same body)
- Rear Tires (Radial/Slicks)
- Differentials (Ball diffs / Gear diffs usually swap)
- Rear Suspension (T-Plates are generally cross-compatible or adaptable)
What DOES NOT Swap?
- Front Springs: Different lengths/diameters.
- Knuckles: Totally different geometry.
- Motor Mounts: MR-04 mounts are specific to the chassis layout.
- Bearings: MR-04 uses smaller/different bearings in the front knuckles.
- Sensored Motors: You need an MR-04 specific harness/ESC to run sensored.
Warning: If you have a box full of MR-03 spares, very few of your front-end parts will work on an MR-04.
3. Electronics & Radio
Both chassis use Kyosho’s receiver unit system. You buy the chassis without a receiver, then plug in the module for your radio (Flysky Noble NB4, Futaba, KO Propo, or Kyosho Syncro).
The MR-04 difference: It supports Sensored Brushless Motors.
- Sensorless (MR-03): Can “cog” or stutter at very low speeds.
- Sensored (MR-04): Butter-smooth startup and throttle control, essential for technical tracks or drifting (though this is a RWD race chassis, not a drifter).
Cost to Race-Ready
MR-03 Path:
- Chassis: around $180 USD — → Kyosho MR-03EVO Chassis Set on Amazon
- Radio Module: around $50 USD
- Tires/Wheels: around $25 USD — → Kyosho Mini-Z Radial Tires 30° on Amazon
- Bearings: around $15 USD — → FastEddy Sealed Bearing Kit for MR-03 on Amazon
- Total: around $270 USD (plus transmitter)
MR-04 Path:
- Chassis: around $240 USD — → Kyosho MR-04EVO2 Chassis Set on Amazon
- Radio Module: around $50 USD
- Tires/Wheels: around $25 USD — → Kyosho Mini-Z Radial Tires 30° on Amazon
- Total: around $315 USD (plus transmitter)
The price gap isn’t huge, but the availability gap can be. MR-04 parts are sometimes out of stock as manufacturers ramp up.
Final Recommendation
Get the MR-03 if:
- You are buying used (great deals available).
- You want to build a specific “weird” wheelbase or narrow car (more aftermarket support).
- You are on a strict budget.
→ See the MR-03 Upgrade Guide for the full build path once you have it.
Get the MR-04 if:
- You want the best performance potential right now.
- You already own a high-end radio (Noble NB4 or Futaba 10PX).
- You hate “cogging” and want that sensored smooth feel.
→ See the MR-04 Upgrade Guide for platform-specific setup notes.
